Install DOCSight with Docker for Internet Monitoring

What DOCSight does and where it fits

DOCSight is not simply an uptime page or a general-purpose charting dashboard. It is a self-hosted evidence system for investigating recurring internet connection problems. It brings signal history, speed measurements, latency observations, packet loss, modem events, incident notes, and report generation into one workflow. That combination is useful when a problem is intermittent and a single speed test or modem screenshot does not show the broader pattern.

The application is particularly focused on DOCSIS cable connections. With a supported cable modem, DOCSight can retain observations such as signal power, signal-to-noise measurements, channel information, and modulation data. It can place those observations alongside speed, latency, packet-loss, outage, and incident information. This helps reveal whether several symptoms occurred during the same time window.

DOCSight also includes a Generic Router mode for connections or routers that do not provide supported DOCSIS signal data. That mode supports applicable workflows involving speed tests, latency monitoring, notes, and reports, but it does not manufacture unavailable cable signal measurements. If DOCSIS analysis is your main reason for installing the application, check the project’s current supported-hardware information before committing to long-term collection.

Choose persistent monitoring or demo mode

The project documents two straightforward container launches. The persistent deployment is intended for connecting your own supported modem or selecting Generic Router mode. It uses a restart policy and stores configuration and history in a named Docker volume. The demo deployment generates synthetic data and is intended for evaluating the interface without connecting a router.

The project’s official quick start is the best place to confirm the current image name and initial launch command. Consult the full installation guidance for deployment paths beyond the Docker Run workflow covered here.

Prerequisites and deployment decisions

The installation command is short, but a reliable monitoring deployment needs several decisions before the container starts. Complete these checks first so that a networking, storage, or port conflict does not look like a DOCSight application problem.

A running Docker engine

You need a machine with Docker installed and its engine running. The machine must be able to download the image from GitHub Container Registry at ghcr.io. On Windows 10 or Windows 11, the project identifies Docker Desktop as the normal supported path for continuous monitoring. An unsigned portable Windows Desktop Preview also exists, but the project describes it as a tryout build rather than the normal always-on collection path.

This guide follows the documented Docker path. A native Python installation has additional requirements, including compiled ICMP and traceroute helpers for complete probing behavior. Those native details are not required when using the container image.

The following command is a single line and works in PowerShell, Windows Command Prompt, and common POSIX shells such as Bash and Zsh:

docker version

A successful response should show that the Docker client can communicate with the engine. If only client information appears followed by an engine connection error, start or repair Docker before installing DOCSight.

A stable host for continuous collection

Choose a host that can remain powered on whenever measurements should be collected. A laptop that sleeps, changes networks, or leaves the premises will create gaps. A home server, a compatible NAS container environment, or another continuously running Docker host is generally a better operational fit.

The host must be able to reach the modem or router that DOCSight will monitor. Remote browser access does not fix local reachability between the container host and that device. Client isolation, VLAN rules, guest Wi-Fi, or host firewall rules can block monitoring even when the DOCSight web interface opens normally.

TCP port 8765 must be available

The documented command publishes container port 8765 as host port 8765. Another process or container cannot use the same host port. Review active container mappings with:

docker ps

If port 8765 is occupied, do not stop an unknown service blindly. Identify the owner and decide whether to move that service, remove an obsolete container, or deliberately choose another host-side port. If you change the host port, update the browser address and any future Localtonet local target accordingly. The container-side application port remains 8765.

Persistent storage and recovery planning

For real monitoring, the official Docker command mounts the named Docker volume docsight_data at /data inside the container. DOCSight stores its configuration and history there. Containers are replaceable, but the volume is the state that should survive ordinary container recreation.

DOCSight lists Backup & Restore as a platform feature. However, the supplied project material does not provide the exact current in-application backup and restore procedure, archive format, compatibility rules, or a project-approved cross-platform raw-volume command. This article therefore does not invent a backup recipe or claim that an unverified archive procedure is supported.

Modem or router selection

For full DOCSIS monitoring, use a modem family supported by the current release. Hardware support changes as drivers are added or corrected. At the time of the supplied project snapshot, the project reported drivers for 22 modem families, including an experimental driver. That count is mutable and must be rechecked against the current hardware list at publication and installation time.

If your connection is not DOCSIS, or your router cannot supply supported DOCSIS information, select Generic Router in the setup wizard. This preserves applicable non-DOCSIS workflows without pretending that cable signal data exists.

Authentication must be resolved before public access

DOCSight lists optional authentication as a platform feature. The supplied current evidence does not document the exact setup fields, defaults, credential requirements, environment variables, or verification sequence. Because remote publication is security-sensitive, this guide cannot present public access as a complete secure deployment.

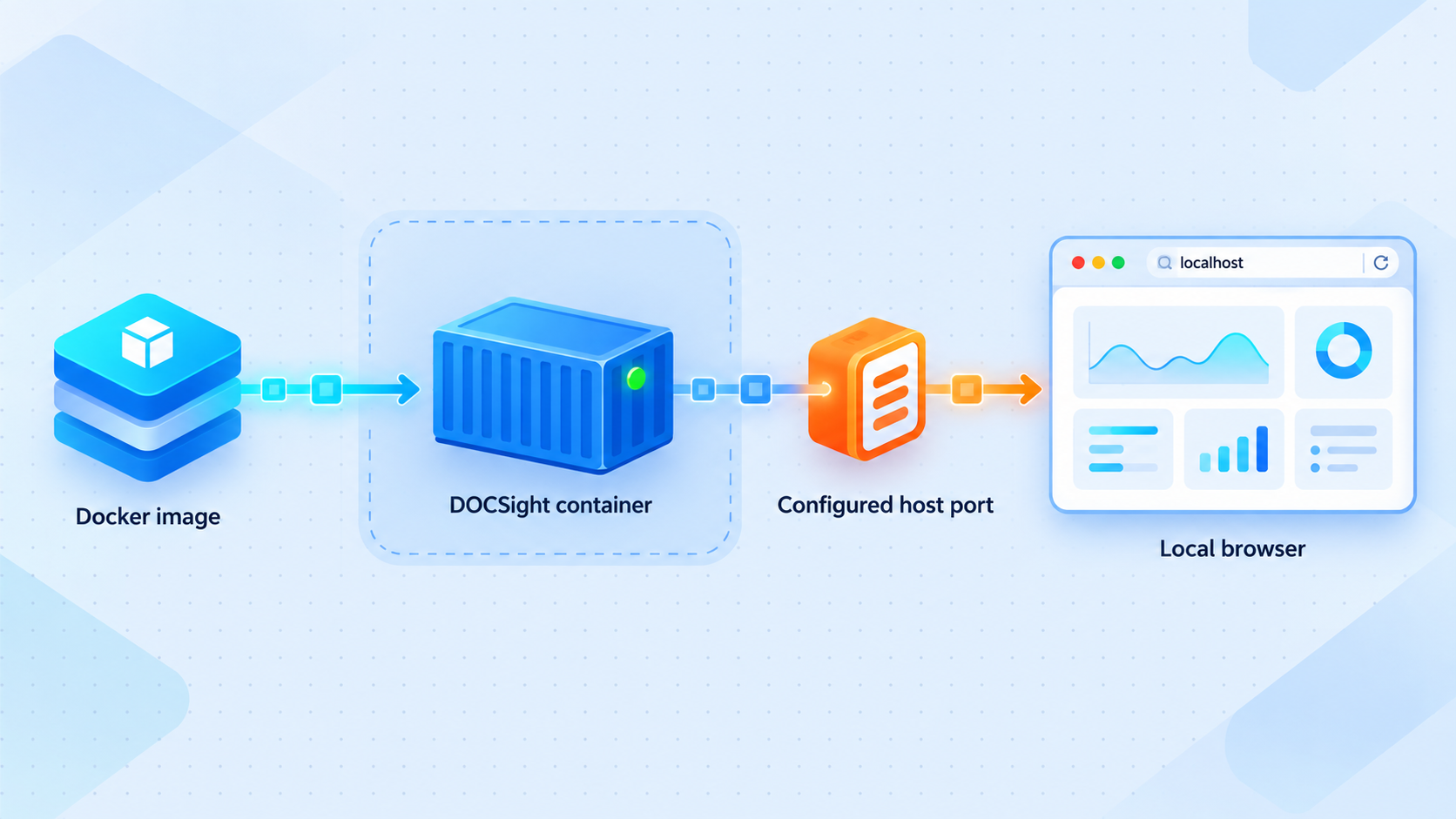

Install DOCSight with Docker

Run the following sequence from a terminal that can communicate with the Docker engine. The commands are intentionally formatted as single lines so they can be copied into PowerShell, Windows Command Prompt, Bash, or Zsh without shell-specific line-continuation characters.

Start the persistent deployment:

docker run -d --name docsight --restart unless-stopped -p 8765:8765 -v docsight_data:/data ghcr.io/itsdnns/docsight:latest

Each option has a specific operational role:

• -d runs the container in the background.
• --name docsight assigns the predictable name used by status, log, update, and diagnostic commands.
• --restart unless-stopped lets Docker restart the container unless an operator intentionally stops it.
• -p 8765:8765 maps host TCP port 8765 to the application’s container port 8765.
• -v docsight_data:/data stores configuration and history in the named docsight_data volume.
• ghcr.io/itsdnns/docsight:latest selects the image currently associated with the mutable latest tag.

To install the supplied example release rather than latest, the command format is:

docker run -d --name docsight --restart unless-stopped -p 8765:8765 -v docsight_data:/data ghcr.io/itsdnns/docsight:v2026-09-16.1

Recheck that tag before using it. Pinning makes the selected image explicit, but it does not replace release review, backup, or update planning.

Optional: try the synthetic demo first

To inspect DOCSight without connecting real equipment, start the documented demo container:

docker run -d --name docsight-demo -p 8765:8765 -e DEMO_MODE=true ghcr.io/itsdnns/docsight:latest

Demo mode produces synthetic DOCSIS history inside the real product interface. It does not require a router and must not be interpreted as measurements from your connection. The demo and persistent commands both publish host port 8765, so they cannot run concurrently on the same host with those unchanged mappings.

Stop and remove the demo before creating the persistent deployment:

docker stop docsight-demo

docker rm docsight-demo

Removing the demo container does not remove docsight_data because the documented demo command does not create or mount that volume.

Complete the DOCSight setup wizard

Open http://localhost:8765 after the container starts. The setup wizard is where you choose the type of network device DOCSight will monitor. Exact fields depend on the selected driver and application release, so enter only values requested by the wizard you are actually running.

For a supported cable modem

Select the matching supported modem family. Do not choose a model only because its product name looks similar. Firmware families can expose different local APIs, authentication behavior, and status formats. Confirm compatibility against the current hardware information.

The Docker host must be able to reach the modem’s local management interface. If the wizard cannot communicate with the modem, test reachability from the host and review segmentation between the host, container network, and modem. Do not expose the modem administration interface to the public internet as a troubleshooting shortcut.

For fiber, DSL, satellite, or an unsupported device

Select Generic Router. This mode omits DOCSIS signal collection but supports applicable speed testing, latency monitoring, incident notes, and reporting. Accurate partial evidence is preferable to selecting an incorrect cable driver and misinterpreting missing measurements.

Optional integrations and data boundaries

The project lists API tokens, notifications, Home Assistant, BQM, Smokeping, speed-test integrations, backup and restore, and browser or app push among its broader capabilities. These are not prerequisites for opening the first dashboard. Configure only the integrations you need and review what information each integration sends elsewhere.

Self-hosting does not mean every optional integration remains local. DOCSight states that monitoring history and generated reports stay on your hardware, while optional integrations communicate with services you choose. Review the project’s data contract for current storage and sharing boundaries.

Verify the installation locally

Do not plan a public tunnel until DOCSight works locally. Local verification separates application and Docker failures from tunnel configuration problems and gives you a clear troubleshooting baseline.

Check the container state

docker ps --filter name=docsight

Confirm that the docsight container is running and inspect the displayed port mapping. If the container is absent, include stopped containers:

docker ps -a --filter name=docsight

A stopped container usually requires log inspection. Repeating the original docker run command with the same name will produce a name-conflict error while the existing container remains present.

Open the dashboard in a browser

From the Docker host, navigate to http://localhost:8765. You should receive the DOCSight interface or setup wizard.

From another device, localhost refers to that device, not the Docker host. Use the Docker host’s LAN address only if your host firewall and local network policy permit access.

Confirm persistent storage exists

docker volume inspect docsight_data

Docker should return metadata for the named volume. Do not manually edit files inside the volume unless documentation for your installed DOCSight release explicitly directs you to do so.

Confirm observations over time

A dashboard loading successfully proves that the web application is available, but it does not prove that modem polling, latency checks, speed measurements, or optional integrations work. Allow DOCSight to collect data and check whether expected observations appear with plausible timestamps.

Missing data should be treated as unavailable, not as proof of a perfect connection. The supplied release notes state that several analysis areas no longer interpret absent measurements as healthy or perfect results. Check the selected driver, network reachability, logs, and diagnostic output if expected measurements remain absent.

Routine operation, diagnostics, updates, and data protection

Preserve the distinction between the replaceable application container and the persistent docsight_data volume. Routine container actions should not delete the volume.

View logs

docker logs docsight

Follow new output with:

docker logs -f docsight

Leave follow mode with Ctrl+C. This closes the local log viewer without stopping the container.

Stop, start, or restart DOCSight

docker stop docsight

docker start docsight

docker restart docsight

Run only the operation you need. An intentional stop remains significant because the restart policy is unless-stopped. Verify that collection resumed after host maintenance.

Run the built-in passive doctor

DOCSight documents a diagnostic module that checks the local runtime, configuration, storage, database, secret-file presence, and optional integration configuration. Its default checks do not contact third-party services.

docker exec docsight python -m app.doctor

The project also documents JSON output. Shell redirection works in PowerShell, Windows Command Prompt, Bash, and Zsh, although the resulting file path follows the current shell directory:

docker exec docsight python -m app.doctor --json > docsight-doctor.json

Review this file before sharing it. A diagnostic tool intended for local troubleshooting can still reveal environmental details.

Record the deployed image before updating

A container created from latest does not update when the registry tag changes. Before replacement, record the image reference currently stored in the container configuration:

docker inspect docsight --format "{{.Config.Image}}"

This command is accepted by common POSIX shells and PowerShell. If quoting behavior differs in another shell or management interface, use docker inspect docsight and review the image field in the returned JSON.

Review and pull a specific release

Read the release notes before selecting a target. The following commands use v2026-09-16.1 only as the release confirmed in the supplied evidence. Replace it with the version you have reviewed:

docker pull ghcr.io/itsdnns/docsight:v2026-09-16.1

Pulling an image does not alter the running container.

Complete the release-specific backup first

Use the current DOCSight Backup & Restore procedure for the installed release, then verify the backup through a test restoration. The evidence available for this revision does not contain those exact steps, so this article cannot truthfully provide a tested project-supported backup or restore command.

Do not continue with an important production update until that recovery gap is resolved. Recording the current image and retaining the named volume help with rollback planning, but neither is equivalent to a validated backup.

Recreate the container with the reviewed image

After completing and testing the release-supported backup, stop and remove only the container:

docker stop docsight

docker rm docsight

Recreate it with the same name, restart policy, port mapping, and named volume, but use the reviewed release tag:

docker run -d --name docsight --restart unless-stopped -p 8765:8765 -v docsight_data:/data ghcr.io/itsdnns/docsight:v2026-09-16.1

Then repeat the local verification checks: inspect container status, open the dashboard, review logs, run the doctor, and confirm that expected historical observations remain available.

Plan rollback before replacement

A container-level rollback means removing the new container and recreating it with the previously recorded image tag while attaching the same named volume. This is safe only when the older application remains compatible with the data format written by the newer release.

If an update performs an incompatible data migration, reusing the modified volume with older code may fail or damage the recovery attempt. Review release notes for migration warnings. Where backward compatibility is not confirmed, restore the pre-update backup according to the release-supported restore procedure instead of attaching an upgraded volume to older code.

Plan remote access with Localtonet

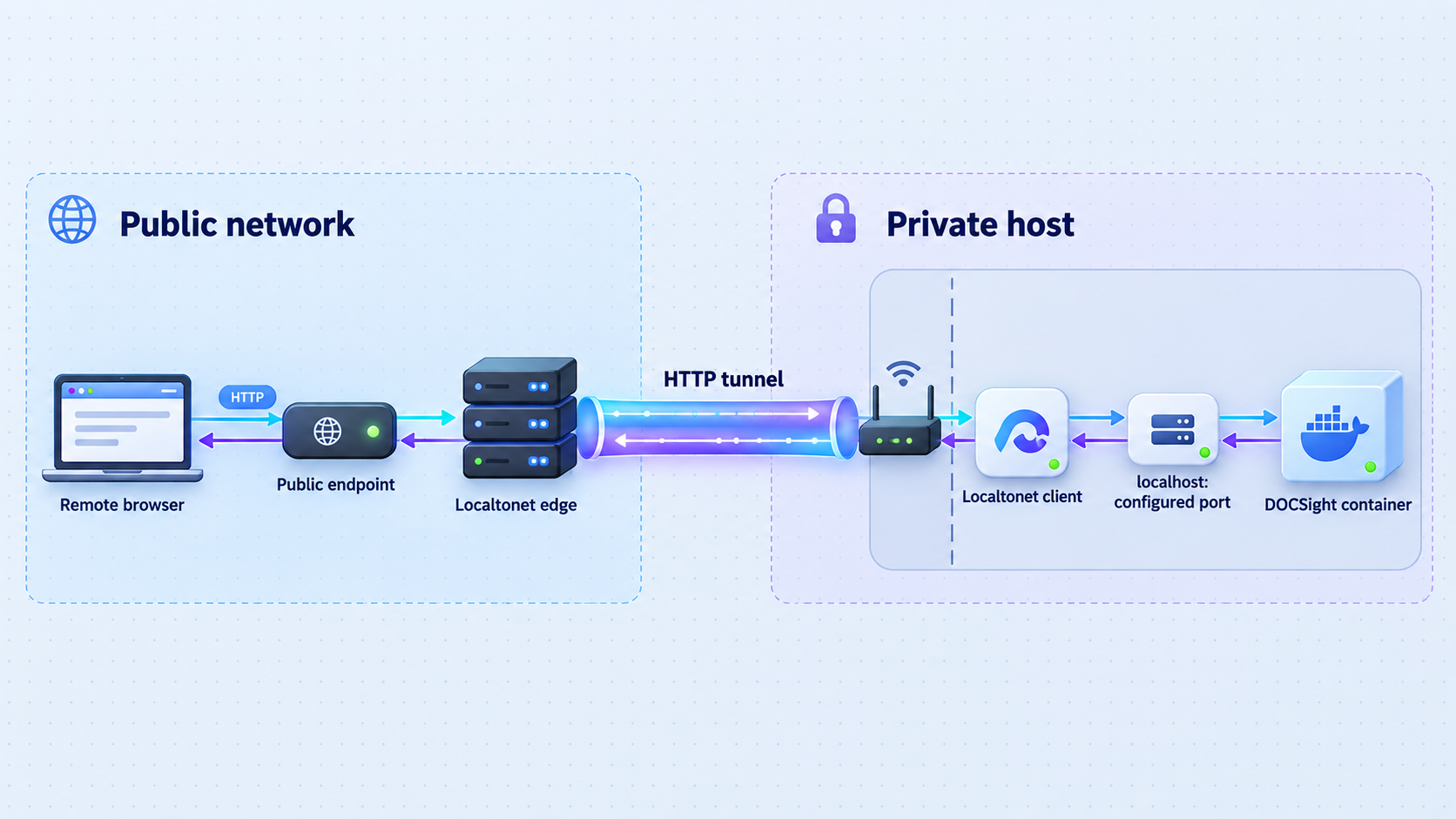

Localtonet can expose a locally running HTTP service without inbound router port forwarding, firewall changes for a public listener, VPN setup, or a public IP address. Our client on the selected device establishes an outbound connection to a Localtonet relay server, and an HTTP tunnel provides a public HTTPS address for the configured local target.

For DOCSight, the local target would ordinarily be the host running the service on TCP port 8765. If our client runs on another LAN device, that device must already be able to reach the Docker host. Localtonet cannot repair local routing, firewall, VLAN, or service-binding failures.

The Localtonet lifecycle after the authentication gate is satisfied

Once current DOCSight documentation supplies an authentication procedure and you have verified it locally, the Localtonet lifecycle is:

1. Install and run our client on the Docker host or another trusted device that can reach DOCSight.
2. Authenticate or select that device using its device-specific token. Never expose the token.
3. Select an available relay server or region from the current dashboard rather than copying a hardcoded server code.
4. Create an HTTP tunnel whose local target is the reachable DOCSight host and TCP port 8765.
5. Select the HTTP Process Type appropriate to your account, such as Random Sub Domain, Custom Sub Domain, or Custom Domain.
6. Review the target and exposure settings, then start the tunnel. Creating it alone does not make it run.
7. Test the public URL from a separate network and confirm that an unauthenticated browser cannot reach dashboard content.
8. Stop or delete the tunnel when remote access is no longer required.

See our HTTP tunnel documentation for the current Localtonet dashboard workflow. Exact relay choices, custom-domain requirements, availability, and account options can change, so use the values shown in your dashboard.

Security boundaries for DOCSight and remote access

DOCSight can contain outage timing, router context, connection measurements, incident notes, attachments, generated reports, and optional integration details. Publishing the dashboard changes its risk profile. Use layered controls rather than relying on the obscurity of a URL.

Verify application authentication first

The project confirms optional authentication, but the evidence supplied for this article does not establish its exact configuration. We therefore cannot provide made-up environment variables, default credentials, menu names, or password rules.

Consult the documentation for your installed release and the project’s security policy. A proper verification should demonstrate that a new private browsing session receives an authentication challenge and cannot display monitoring data before valid credentials are supplied.

Use least privilege for integrations

If you configure API tokens, Home Assistant, notifications, speed-test services, BQM, Smokeping, or another integration, grant only the permissions required for that workflow. Rotate disclosed credentials and remove unused integrations. Do not use a public tunnel to expose modem administration pages or unrelated management services.

Protect Localtonet device tokens

A Localtonet auth token identifies the client device. Keep it out of source control, screenshots, shell examples, chat messages, issue reports, and container configuration shared publicly. If a token may have been disclosed, use the current account workflow to replace or revoke it.

Control when the service is reachable

Start the tunnel only when remote access is needed and stop it afterward. Delete obsolete tunnel configurations when they are no longer required. Creating a tunnel does not start it, and stopping DOCSight does not automatically delete its Localtonet configuration.

Maintain software and recovery readiness

Review DOCSight release notes, Docker host updates, and Localtonet client updates routinely. Use release pinning where reproducibility matters. Complete the project-supported backup process before significant changes, and prove recovery in a test environment.

Troubleshooting installation and access problems

The Docker command reports a container-name conflict

A container named docsight already exists, even if it is stopped. Inspect it before taking action:

docker ps -a --filter name=docsight

docker logs docsight

If it is the intended installation, start or troubleshoot it instead of creating a duplicate. Remove it only after identifying its image and protecting the required persistent data.

Docker reports that port 8765 is already allocated

Another container or host process is using the port. Use docker ps to check container mappings, then identify non-container processes with the tools appropriate to your operating system. Do not terminate an unidentified process.

If you deliberately select a different host port, use that port for browser access and any future Localtonet target. For example, a mapping of -p 8876:8765 would use host port 8876 while leaving the DOCSight container port at 8765. This is a Docker networking example, not the project’s documented default.

The container exits immediately

docker ps -a --filter name=docsight

docker logs docsight

Possible categories include image download problems, storage errors, port conflicts, or application startup failures. Follow the actual log message rather than guessing. If the container remains running, use the built-in doctor for a structured check.

The dashboard works on the server but not another LAN device

Confirm that the second device uses the Docker host’s LAN address rather than localhost. Check the host firewall, client isolation, VLAN policy, and whether the published port is available on the intended interface. Make only the smallest change allowed by your network policy.

The dashboard loads, but modem data is missing

A functioning web interface and functioning modem polling are separate conditions. Confirm that you selected the correct supported hardware family, that the Docker host can reach the modem, and that wizard values are accurate. Review logs and run:

docker exec docsight python -m app.doctor

If your device is unsupported, use Generic Router mode rather than expecting DOCSIS fields to populate. Missing measurements are unavailable data, not healthy measurements.

Monitoring stopped after a host restart

Confirm that Docker started, then inspect the container:

docker ps -a --filter name=docsight

The unless-stopped policy does not replace verification. If an operator previously stopped the container, or Docker cannot mount storage or start the application, collection may remain offline.

An update starts but historical data is missing

Stop troubleshooting actions that might modify storage. Inspect the container configuration and confirm that docsight_data is still mounted at /data. A replacement command that omitted the volume can start a fresh-looking installation without deleting the original volume.

docker inspect docsight

If the correct volume is attached and data remains unavailable, review release notes, logs, and the release-supported restore procedure. Do not repeatedly recreate containers or manually alter volume files.

A future Localtonet URL does not open

After authentication has been documented and the tunnel is allowed, work from the inside out:

1. Open http://localhost:8765 on the Docker host.
2. If our client runs elsewhere, verify that its device can reach the Docker host and port.
3. Confirm that the correct Localtonet device is connected.
4. Confirm that the HTTP tunnel points to the correct local IP address and host port.
5. Confirm that the tunnel was started, not merely created.
6. Test the public URL from a separate network and verify that authentication blocks anonymous access.

If the public URL displays the wrong service, stop the tunnel immediately and recheck the local target. A changed port mapping or incorrect address can expose an unintended application.
